Submersible Winding Wire

Submersible Winding Wire
Submersible Winding Wire
Submersible Winding Wire

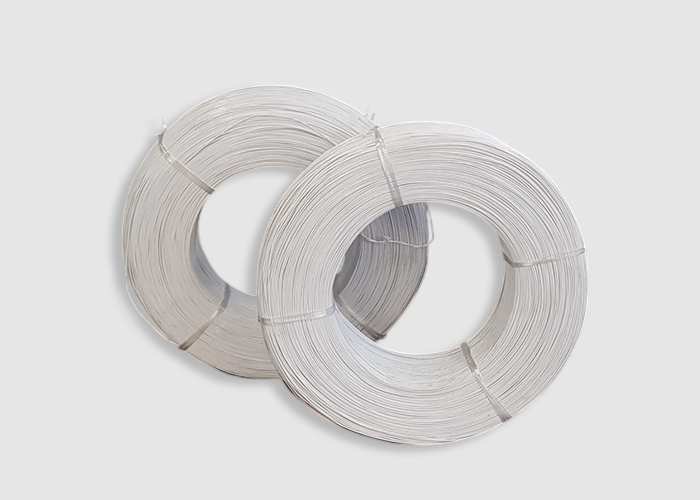

We offer poly wrapped winding wire commonly known as "Submersible winding wire". The copper conductor is wrapped with thin polyster film and Biaxial Oriented Poly Proplyene (BOPP) films. The most modern plant with sophisticated wrapping heads and in line continuous heat shrinkage furnace is installed to get uniform covering. A complete quality assurance testing by instruments covering all governing standards is available.

The test standards followed are IS 8783:1995.

Application

Used in submersible pumps motors of all sizes for domestic and industrial applications:

Packaging

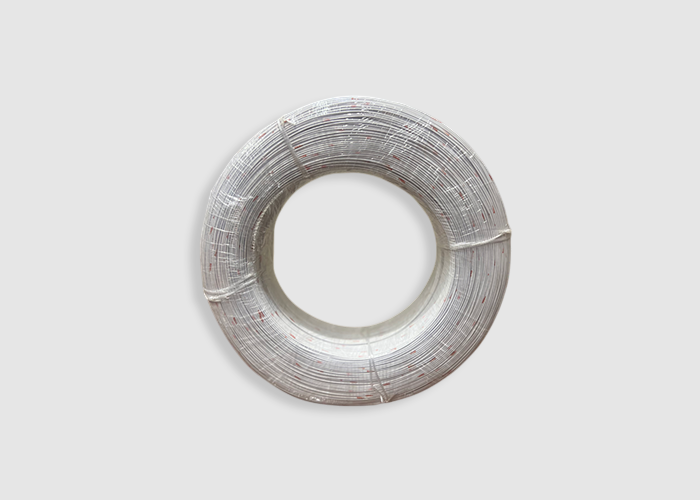

Available in coil form with suitable length as per size, in polythene bag and packed in inner and outer corrugated boxes.

Special Salient Features

  • Saves energy ETP grade high conductivity annealed copper used
  • Less current leakage No air gap between the films
  • Tear resistant-High mechanical strength High tenstile strength
  • Each coil tested at 3500 V
  • Heat shock test at 150°C
  • Easy winding-Resistance annealed copper and controlled OD
  • Manufactured by ultra modern automatic plant as per IS 8783 (Part 4/Sec. 3)

Testing Facilities For Submersible Winding Wires

The quality assurance having all the testing facilities with ultra modern, high precision instruments and rigorous testing plans. Details of test which conforms to IS 8783 (Part 4/Sec. 3) is as follows:

Sr. No. Name of the Tests Units Instruments Used
1 Size (Diameters) MM Micrometer
2 Elongation Percentage Tensile tester
3 Conductor resistance Ohm/km Resistance meter
4 Volume resistivity Ohm-cm Million mega meter
5 High voltage tester KV High voltage tester
6 Thermal ageing Change in elongation and tensile Ageing oven and tensile tester
7 Shrinkage test Percent Circulating hot air oven
8 Water absorption mg/cm Vaccum oven and pump desecrator
9 Hot deformation Percent Circulating hot air oven
10 Heat shock test No sign of cracks/scales/separation of layers Circulating hot air oven and mandrels

General Properties

Sr. No. Nominal conductor diameter (mm) Tolerance + (mm) Nominal resistance Ohms/km at 20'C Over all diameter Weight of poly wrapped (kg / k * m) Elongation minimum (%)
1 0.40 0.004 137.15 0.80 1.467 24
2 0.50 0.005 87.87 0.90 2.154 25
3 0.60 0.006 60.96 1.00 2.980 26
4 0.70 0.007 44.78 1.10 3.946 28
5 0.80 0.008 34.29 1.20 5.052 28
6 0.90 0.009 27.09 1.30 6.298 29
7 1.00 0.010 21.94 1.40 7.683 30
8 1.10 0.011 18.14 1.50 9.208 30
9 1.20 0.012 15.24 1.60 10.873 31
10 1.30 0.013 12.98 1.70 12.678 32
11 1.40 0.014 11.20 1.90 14.891 32
12 1.50 0.015 9.75 2.00 16.989 32
13 1.60 0.016 8.57 2.10 19.227 32
14 1.70 0.017 7.59 2.20 21.605 32
15 1.80 0.018 6.77 2.30 24.122 32
16 1.90 0.019 6.08 2.40 26.780 32
17 2.00 0.020 5.49 2.50 29.576 33
18 2.10 0.021 4.98 2.60 32.513 33
19 2.20 0.022 4.53 2.70 35.589 33
20 2.30 0.023 4.15 2.80 38.805 33
21 2.40 0.024 3.81 2.90 42.161 33
22 2.50 0.025 3.51 3.00 45.656 33
23 2.60 0.026 3.25 3.10 49.291 34
24 2.70 0.027 3.01 3.20 53.066 34
25 2.80 0.028 2.80 3.30 56.980 34
26 2.90 0.029 2.61 3.40 61.035 34
27 3.00 0.030 2.44 3.50 65.228 34

These are only indicative values. Improvement is an ongoing process at GWPL and efforts exceed average values.

Advantages of Submersible Copper Wire

  • High Electrical Conductivity
  • Superior Waterproof Insulation
  • Flexibility
  • Voltage Withstand Capacity
  • Oil & Chemical Resistance
  • Durability under Pressure
